碳酸饮料灌装 CARBONATED DRINKS FILLING MACHINE您现在的位置：网站首页 > 碳酸饮料灌装
碳酸饮料灌装设备
- 产品描述：产品详情 本机主要用于碳酸饮料的灌装作业。本机将冲洗、灌装、封口三功能合在一个机体上，全过程实现自动化，适用于聚酯瓶、塑料瓶灌装碳酸饮料可乐的灌装
产品介绍
产品描述：
Application: carbonated drinks, CSD, cola, soda water, energy drinks, kvass, beer, etc.
Containers applied for: PET bottle of all volumes and shapes
Filling system: isobaric filling
Production capacity: 3,000BPH–18,000BPH (500ml)
Technical features of carbonated filling machine
l The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
l High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
l By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
l Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
l The high speed line is of ring type pressure bearing hydraulic cylinder.
l High speed and large flow filling valve assures the high filling speed and exact fluid level.
l Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
l The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

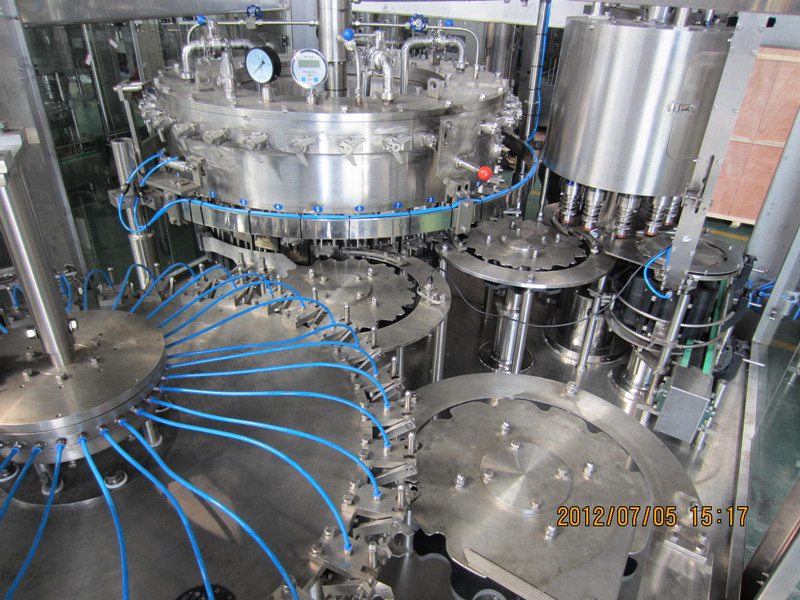

Equipment structureof carbonated filling machine
l Rack
l Rotary rinser
l Rotary carbonated filler
l Rotary capper
l Bottle infeed and outfeed system
l Control
Containers applied for: PET bottle of all volumes and shapes
Filling system: isobaric filling
Production capacity: 3,000BPH–18,000BPH (500ml)
Technical features of carbonated filling machine
l The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
l High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.
l By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
l Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
l The high speed line is of ring type pressure bearing hydraulic cylinder.
l High speed and large flow filling valve assures the high filling speed and exact fluid level.
l Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
l The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.
Equipment structureof carbonated filling machine
l Rack
l Rotary rinser
l Rotary carbonated filler
l Rotary capper
l Bottle infeed and outfeed system
l Control
