Carbonated Soft Drinks (CSD) Filling Machine

Product introduction

Technical features of carbonated filling machine

l  The air conveyor is directly connected with bottle-in starwheel. The bottle is transferred by neck holding.
l  High speed line adopts bottle clamps to transfer the bottle. It makes work much easier when bottle size is changed.

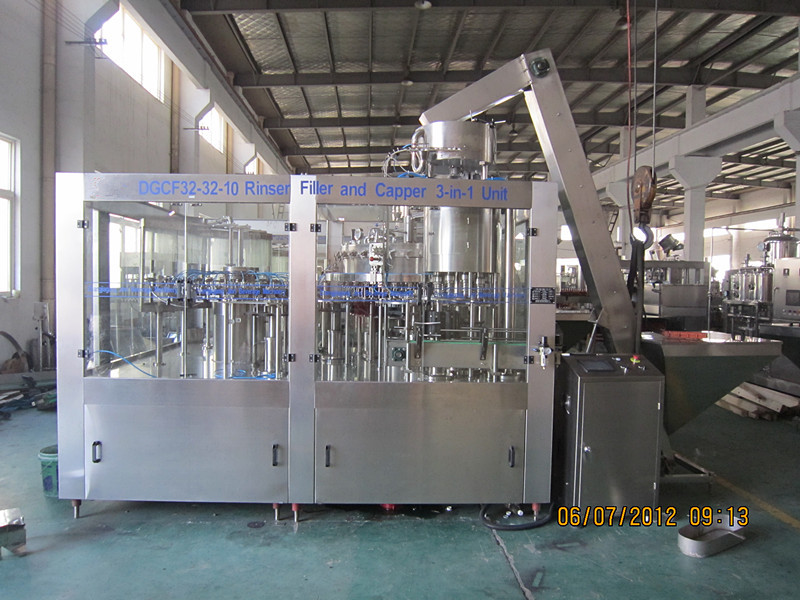

l  By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle change is easier.
l  Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
l  The high speed line is of ring type pressure bearing hydraulic cylinder.
l  High speed and large flow filling valve assures the high filling speed and exact fluid level.
l  Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.
l  The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain’s height.

Equipment structureof carbonated filling machine

l  Rack

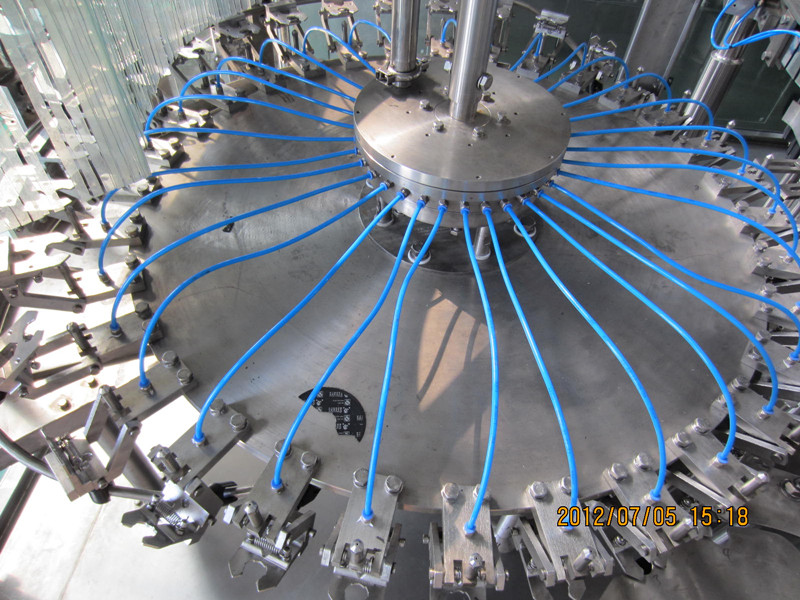

l  Rotary rinser

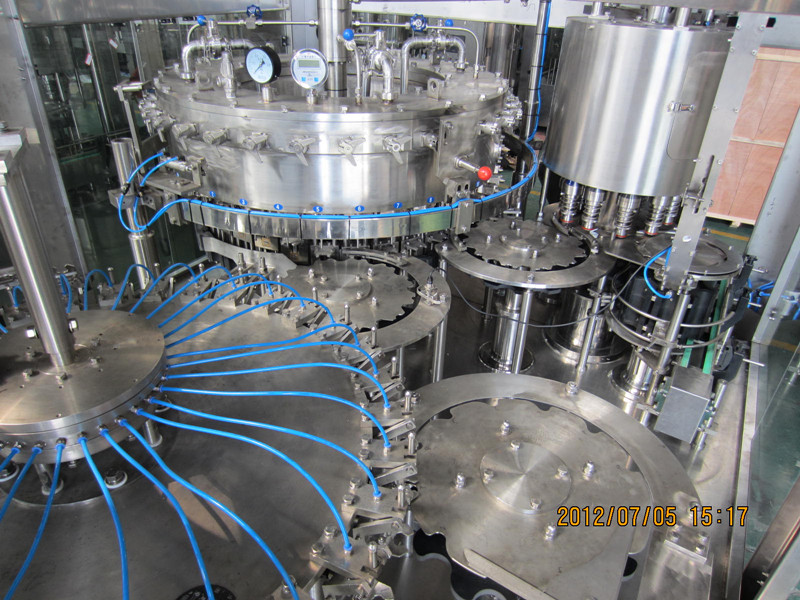

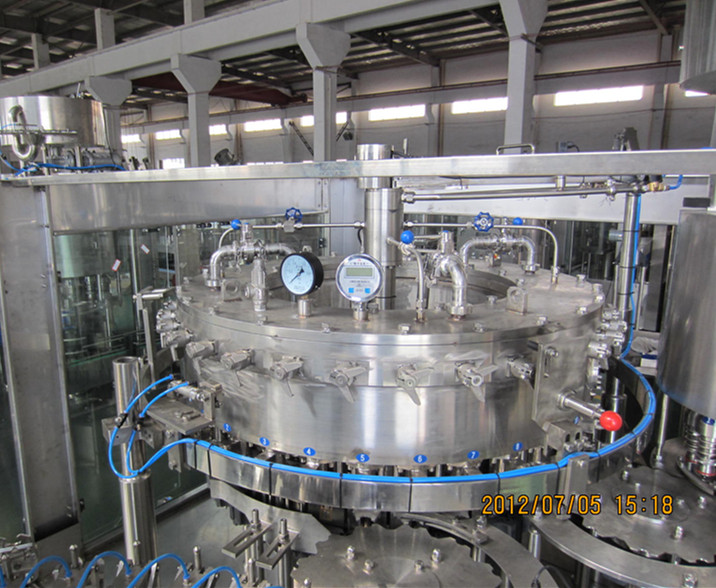

l  Rotary carbonated filler
l  Rotary capper
l  Bottle infeed and outfeed system
l  Control

 FILLING PARTS

 FILLING MACHINE  PARTS
